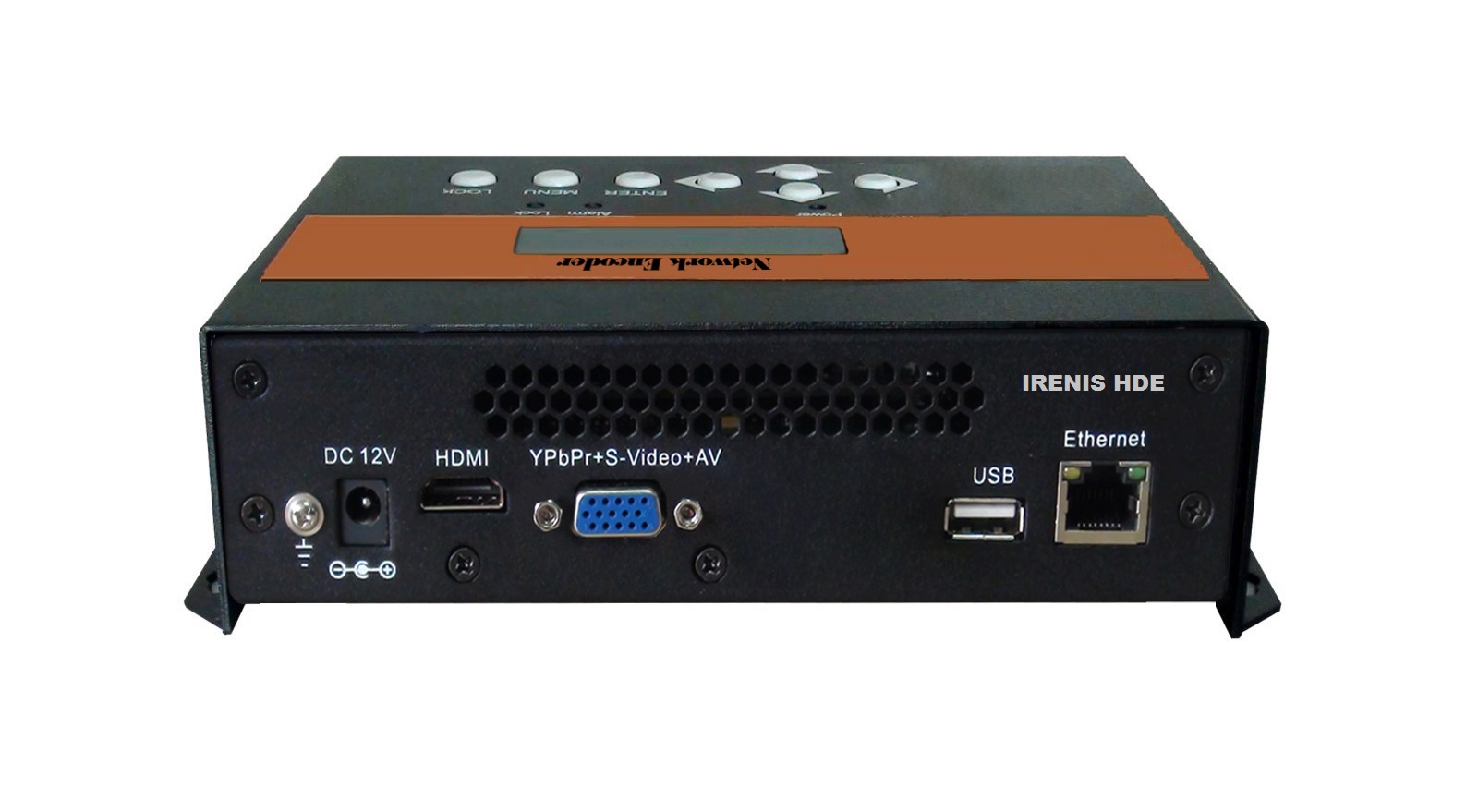

IPTV Encoder Streamer

Data Sheet

User Manual

IRENIS IPTV Encoder Comparison Chart

Ask for further info or quotation

H.264 encoder & streamer with dual stream output

The most versatile IP encoder in the market. Several input signal and IPTV output format alternatives. Recording and playback of any video content through attached USB memory device. Watch and control your live and recorded TV content anywhere, anytime, also with Apple IOS mobile devices.

  • H.264 encoder & IP streamer combined
  • HDMI / YPbPr / S-Video / AV / USB input
  • Resolution 1080p, 1080i, 720p, SD. Dual IP streams out.
  • IP output: UDP (unicast/multicast), RTP/RTSP, HTTP, HLS
  • Distribution of video camera, PC monitor, satellite receiver, DVD / Blu-ray player content over LAN, WAN or internet.
  • Live stream broadcast
  • Video-over IP applications
  • IPTV/OTT applications, Video conferencing
  • Local IPTV on LAN applications, Corporate IPTV, Hotel IPTV
  • Recording of *.ts files through USB port
  • Playback of *.ts files from external USB devices
  • USB device & external hard-disk drive connection

Watch and control your live and recorded TV shows anywhere, anytime.

The channels can be watched on tv sets equipped with IPTV Set-Top Boxes, on iPad’s, on iPhone’s, on PC’s.

6-10 Apple terminals can be used simultaneously running as per different resolution and bit rate setting.

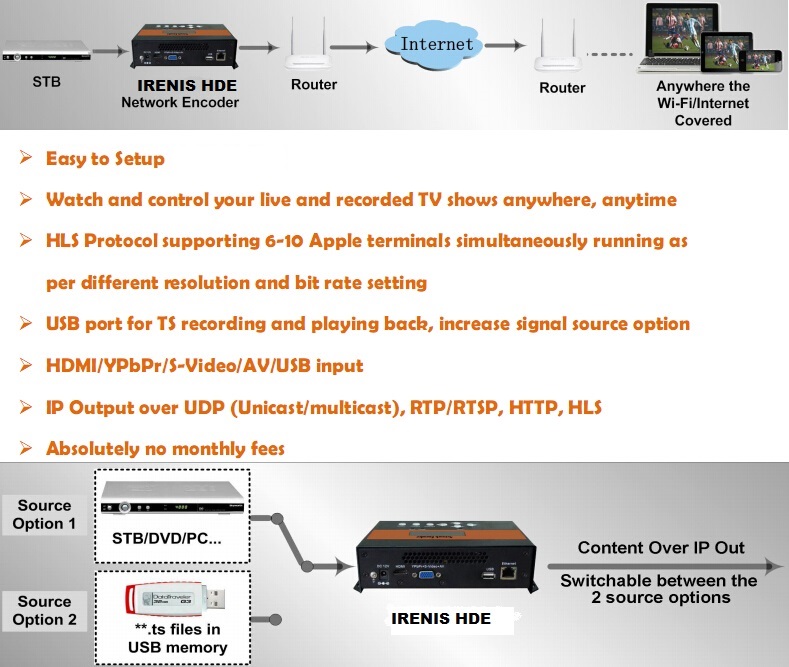

Irenis Encoder Streamer Diagram

Features

Designed for IP broadcasting. The signals source can be from STB, PC, TV and etc. It can transfer the live program through the internet/LAN, and the output signals are to be received by PC, phone and other mobile terminals.

IRENIS HDE lets you access your IP STB, PC or TV anywhere to watch your programs. Whether you are in your house or across the globe, you’ll never miss a game or your favourite show.

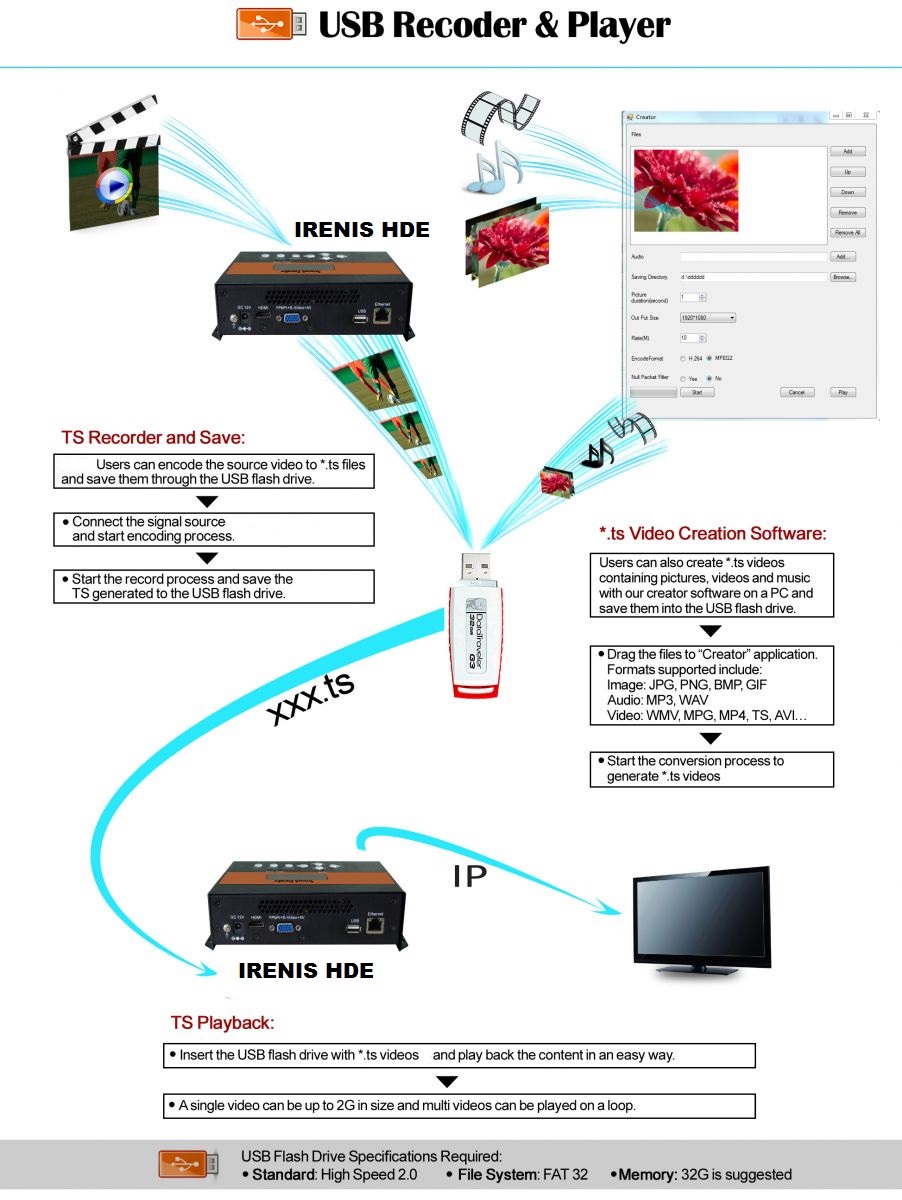

The USB port is designed to record and save the encoded video (TS) in ts files in the USB Keys or Hard Disks and play it back through IP out to increase your content options.

Application

Streamer for OTT platform providers for feeding the CDN with live video.

Streamer for multicast IPTV distribution on LAN.

Encoder for Video-over-IP applications. Suitable for use on Ka-Sat live feeds.

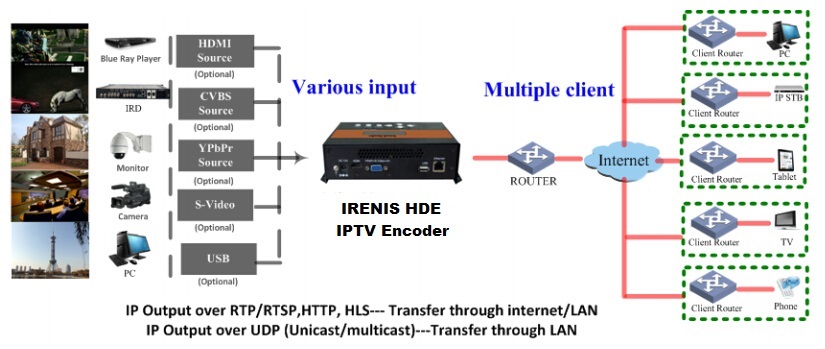

Irenis Encoder Streamer Diagram

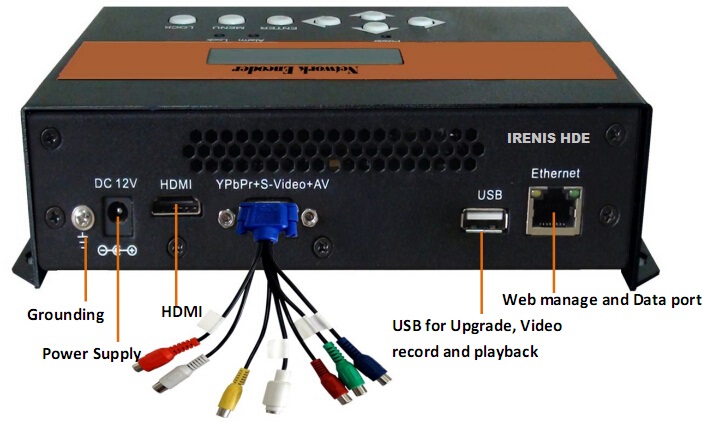

Irenis Encoder Streamer Diagram
Irenis Encoder Streamer Diagram

Technical Specifications

Function H.264 Encoder, IP Streamer, Transport stream player, Transport stream recorder

INPUT

  • Connection HDMI, RGB (YPbPr), S-Video, Audio/Video (RCA connector)
  • Resolution 1080p, 1080i, 720p (HDMI) or 1080i, 720p (RGB or, 576p, 480i SD (AV, S-Video)
  • Video encoder MPEG-4 AVC / H.264 high profile, main profileAudio encoder MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC
  • Connector HDMI or RCA-female and S-Video through VGA adapter

IP SYSTEM

  • Data interface RJ45, 100M Ethernet interface, Control over web browser
  • Protocol HTTP, RTP/RTSP, HTTP, HLS on LAN and Internet; UDP (unicast/multicast) on LAN
  • Data Rate 1 Mbps – 19 Mbps
  • Rate control CBR/VBR
  • GOP Structure IBBP
  • Adv Pretreatment De-interlacing, Noise reduction, Sharpening

SYSTEM

  • Power supply 12V DC
  • Dimensions 183 x 110 x 45mm
  • Weight < 1kg
  • Warranty 2 years
