IPTV Decoder

BLANKOM HDD-264

BLANKOM HDD-264 Decoder

Data Sheet

Quick Start Manual

Ask for further info or quotation

IPTV Decoder with HDMI, CVBS, VGA Output & Mosaic-Viewer

IPTV Decoder (IP Receiver) for IPTV-on-LAN systems, for OTT, for Video-over-IP applications. Up to 1080p@60fps UHD resolution. Very stable operation on multicast and on unicast distribution on local area networks. HDMI, CVBS, VGA outputs. Remote management by an in-built Webserver-Interface. Monitoring up to 4 streams on one TV picture (4x Mosaic). All BLANKOM decoders offer perfect image quality and stable system operation at an affordable price.

  • H.264 compatible Decoder & IP Receiver
  • Inputs: 1x HD/SD in h.264 compatible stream like from our Encoders (actually no MPEG2 support)
  • Outputs: HDMI, CVBS, VGA in parallel
  • Stereo Audio embedded decoding of AAC and MP1L2, external Audio Output (3.5 mm Stereo)
  • HD Resolution 1080p, 720p (actually no interlaced support like 720i, 1080i)
  • IP Input: RTSP, UDP/RTP, HTTP, HLS, FLV, RTMP, RTMPS
  • Reception of Video Camera UHD/HD streams and other source content over LAN or WAN
  • Inserting of Text, Logos and scrolling Text as Overlays
  • Video-over IP applications (Signal distribution)
  • Digital Signage applications
  • Video conferencing, Camera streaming
  • IPTV on LAN applications, Corporate IPTV for Broadcasters
  • Monitoring up to 4 streams on one TV picture (4x Mosaic)
  • Remote management by an in-built Webserver-Interface

BLANKOM HDD-264 decoder serves the
distribution of Full HD TV/Video content
through IP networks in digital quality.

The live video can be received by the decoder
as an IP stream and displayed on standard TV sets.
Monitoring of 4 Streams in parallel on one TV set by a
mosaic feature.

Features

BLANKOM HDD-264 Decoder is designed for TV signal reception in excellent quality over LAN and WAN.

The h.264 compatible compression technology features low latency and low bit rates for IPTV system reception. The high-efficient decoding chip saves bandwidth cost through all its resolution range.

Reception of SD and HD channels through the IPTV/OTT network using state-of-art IP technology from almost any kind of video input.

Up to 4 streams on one TV output as Mosaic picture can be displayed.

Excellent video and audio quality. High reliability. Web-Interface. No regular service and maintenance need during operation.

Application

IP Decoder for multicast IPTV distribution on LAN

IP Decoder for Video-over-IP applications

Decoder for CCTV cameras with IP output

IPTV Receiver for OTT systems

Digital Signage Receiver

4 screen Mosaic Multiwiever for any kind of IPTV network and for OTT

IPTV/OTT/Info-Channel applications

Local IPTV on LAN applications, Corporate IPTV, Hotel IPTV, Campus IPTV, Education IPTV

BLANKOM HDD-264 Decoder

Application Example:

BLANKOM IP Decoder HDD-275 Mosaic Viewer

Example output of 4 different encoded streams with Text overlays inserted by the encoders & the decoder

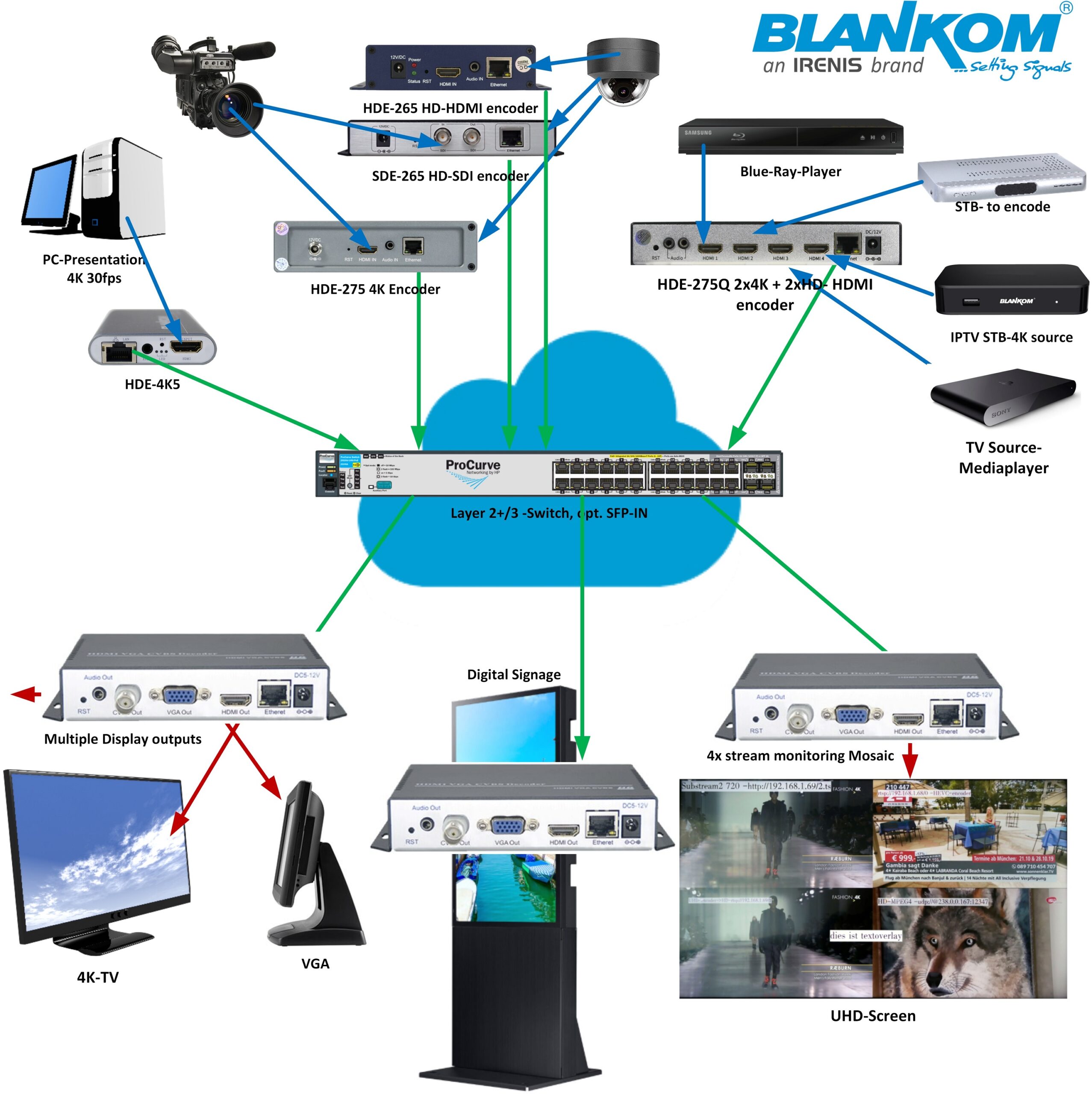

Application Example:

BLANKOM HDD-264 Streamer Application

Technical Specifications

Function: h.264 (MPEG4 compatible) Decoder and 4 pictures Mosaic-Viewer

INPUT

  • GbE input, RJ45
  • Input Resolution: 1080p, 720p and below (interlaced input like 1080i, 720i not supported)
  • Protocol: HTTP / HLS / FLV / RTSP / RTMP(s) / UDP/RTP (Unicast/Multicast)
  • Data rates: 100 kbps – 32 Mbps per stream

OUTPUT

  • Output Resolution HDMI: 1080P@60 / 1080i@60 / 1080P@50 / 1080i@50 / 1080P30 / 1080P25 / 720P60 / 720P50 / 576P50 / 480P60 fps
  • Output Resolution VGA: 1080P@60 / 1080i@60 / 1080P@50 / 1080i@50 / 1080P30 / 1080P25 / 720P60 / 720P50 / 576P50 / 480P60 fps
  • Output Resolution CVBS: PAL 720×576 & NTSC 720×480
  • AUDIO: HDMI embedded Audio (additional 3.5 mm Stereo jack out)
  • Maximum decoding data rate @ HDMI: 1 Picture stream output: 4k@30fps @32mbps
  • Up to 4 Input streams for Mosaic picture:
    • 1-1080p@60fps bit rate can be up to 32mbps
    • 2-1080p@60fps@10mbps max. for each stream
    • 3-1080p@50fps@10mbps max. for each stream
    • 4-1080p@30fps@20mbps max. for each stream

SYSTEM

  • Video Decoder h.264 (AVC) in max. 1080p@60fps
  • CBR or VBR baseline /main /high profile
  • Audio Decoder STEREO AAC/AAC+/AAC++/MP3/MP2/AC3 G711
  • Audio sample rates 8000/11250/22500/44100/48000Hz
  • OSD 4 Logo (bmp’s with or w/o transparent color) and Text Insertion as transparent overlays
  • Picture adjust Brightness, Hue, Saturation, Contrast, Picture Crop, Rotating 0,90,180,270°
  • Profiles H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline
  • Audio output HDMI embedded Audio (additional 3.5 mm Stereo jack out)
  • Firmware upgrade support by Web IF

GENERAL

  • Relative Humidity 5% to 90% non-condensing
  • Storage temperature -20° to 80 °C
  • Operating temperature -10° to 70 °C
  • Power supply 12V DC, 1A
  • Dimensions 155 × 120 × 30 mm
  • Weight 266 g / incl. Package and PSU: 0.7 kg
  • Consumption 5-10W

Specifications are subject to change without prior notice.
