IPTV Encoder with 8/16/24 HDMI Inputs

EMU-8508/8516/8524

BLANKOMK EMU-8508 IPTV Encoder
BLANKOM EMU-8508 IPTV ASI ENCODER

Ordering Guide:

4 Versions available:

BLANKOM EMU-8508

  • 8 HDMI in
  • 8 SPTS IPTV out
  • 1 MPTS IP out

BLANKOM EMU-8516

  • 16 HDMI in
  • 16 SPTS IPTV out
  • 1 MPTS IP out

BLANKOM EMU-8524

  • 24 HDMI in
  • 24 SPTS IPTV out
  • 1 MPTS IP out

Optional for all models:

  • 1 ASI out

IPTV Encoder with multiple HDMI Inputs, with Multiplexer, with IP (SPTS and MPTS) and ASI Output. On-Screen Graphics and Scrolling Text Inserter.

5. Generation BLANKOM® IPTV Headend Technology. HDMI input, IPTV and ASI output. Logo, Banner and Text inserter.
Multiple HDMI outputs can be encoded in SPTS IPTV streams, can be multiplexed into one MPTS IPTV stream and into one ASI Mpeg stream. Graphics and scrolling text can be added onto each service simultaneously. The device can be operated from anywhere on LAN, WAN or Internet.

  • EMU-8500 series includes 4 different versions:
    8 HDMI input, 8 SPTS IPTV and 1 MPTS output (EMU 8508)
    16 HDMI input, 16 SPTS IPTV and 1 MPTS output (EMU 8516)
    24 HDMI input, 24 SPTS IPTV and 1 MPTS output (EMU 8524)
  • 1 ASI output (option)
  • SRT (Secure Reliable Transport) protocol support (option)
  • On-Screen Graphics, Scrolling Text, QR Code
  • Accurate PCR adjusting
  • PID filtering and re-mapping
  • PSI/SI rebuilding and editing
  • “Null PKT Filter” function
  • Remote control and firmware, web NMS management
  • Updates via web
  • Professional quality, breakthrough price

EMU-8500 series 8~24 HDMI input IPTV Encoder with extensive Graphics and Text Insertion features, with SRT support.

Features

BLANKOM EMU 8500 series  MPEG4 AVC/H.264 HD IP Encoder is a professional HD audio & video encoding and multiplexing device.

It has 8 ~ 24 HDMI video input interfaces, supporting MPEG-4 video encoding and MPEG 1 Layer 2 audio encoding.

This device can simultaneously encode 8 ~ 24 HDMI channel HD audio & video; moreover, it has an IP output port, which can support 1 MPTS and 8 ~ 24 SPTS  IP out. There is also an ASI output option.

In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.

Application

IPTV encoder for multiple HDMI signals with IPTV output.

Logo and advertisement banner inserter.

Scrolling text message inserter.

Multiplexer with multiple HDMI inputs, ASI and MPTS IP output.

Front and Rear Panels

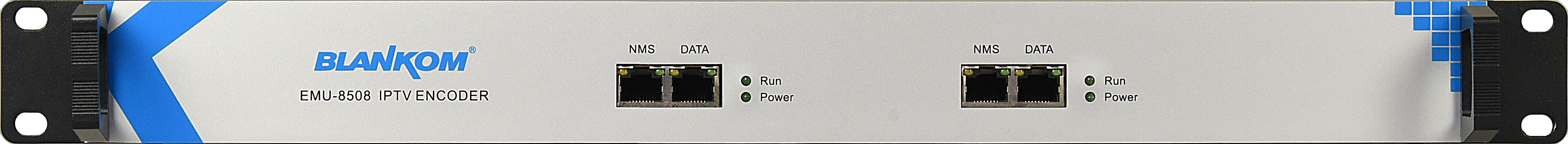

BLANKOMK EMU-8508 IPTV Encoder

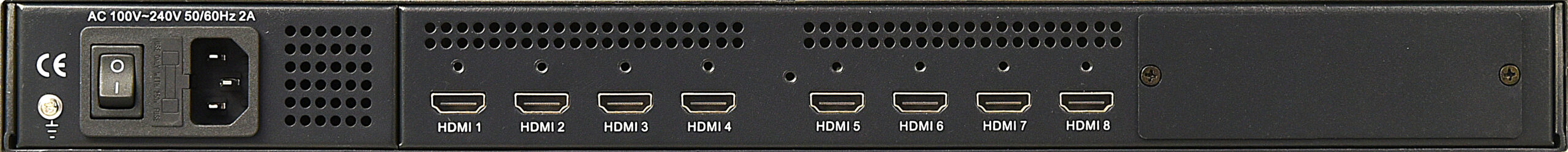

BLANKOMK EMU-8508 IPTV Encoder rear

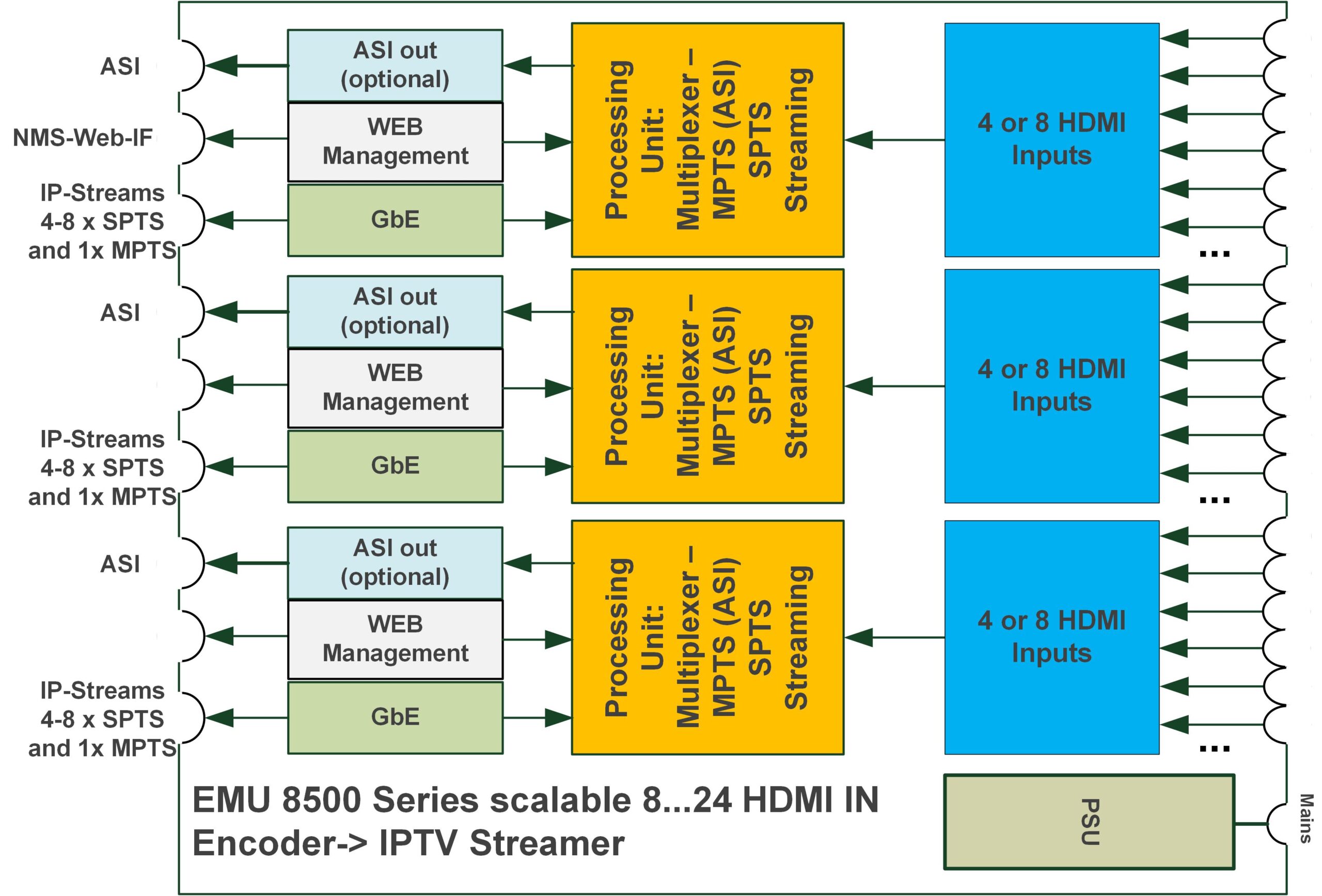

System Diagram

BLANKOMK EMU-8508 IPTV Encoder Block Diagram

Technical Specifications

FUNCTION

IPTV Encoder with HDMI input, Logo and Scrolling Text insertion feature

INPUT

  • 8, 16 or 24 HDMI signals

OUTPUT

  • 8, 16 or 24 SPTS IPTV streams
  • 1 MPTS IPTV stream
  • 1 ASI Mpeg stream (option)

Video

  • Input Resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i
  • Output Resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P, 720×480_30P
  • Encoding: MPEG-4 AVC/H.264
  • SRT (Secure Reliable Transport) protocol support (option)
  • Bit-rate: 1Mbps~13Mbps each channel
  • Rate Control: CBR/VBR
  • GOP Structure: IP…P (P Frame adjustment, without B Frame )

Audio

  • Encoding: MPEG-1 Layer 2
  • Sampling rate: 48KHz
  • Resolution: 24-bit
  • Bit-rate: 64kbps,128kbps,192kbps, 224kbps, 256kbps, 320kbps, 384kbps

On-screen insertion:

  • 1 PNG Graphics
  • 1 Scrolling Text
  • 1 QR Code

Multiplexing

  • 1 Multiplexer MPTS
  • 1 ASI output as copy of the MPTS (option)
  • PID remapping (automatically or manually),  Accurate PCR adjusting,  Generate PSI/SI table automatically
  • Maximum PID Remapping: 180 input per channel

Stream Output

  • SPTS (8/16/24 SPTS) IP and 1 MPTS output over UDP/RTP
  • 1*1000 Base-T Ethernet interface
  • 1 ASI output(optional) as copy of MPTS

SYSTEM

  • Control: Remote management Web NMS(10M/100M)
  • English language menu
  • Ethernet software upgrade

GENERAL

  • Dimensions: 482mm×410mm×44mm, 19” 1U,
  • Approx weight 8kg
  • Power: AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz
  • Power consumption 70W
  • Temperature: 0~45℃ (operation), -20~80℃ (storage)

Specifications are subject to change without prior notice.
